  .Contactor Selection Guide



















°§Dimensions
°§Model designation
Designation
Signal
Description
1.Type
TC
TCR

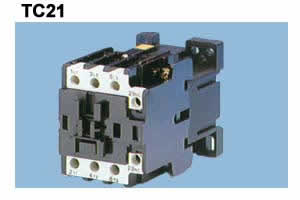

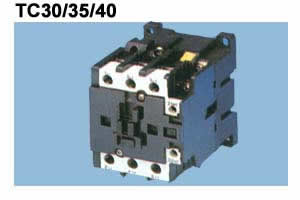

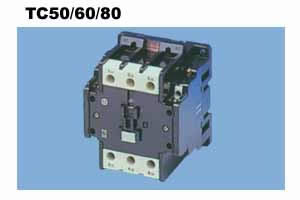

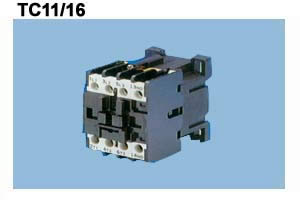

°°Magnetic Contactor

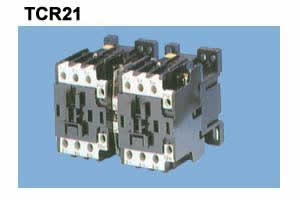

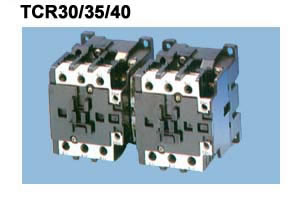

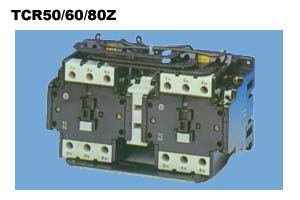

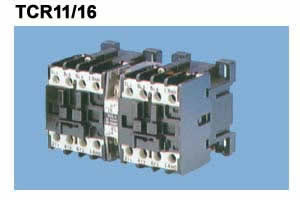

°°Reversing Contactor
2.Model
11
16
21
30
35
40
50
60
80
12A (Rated Capacity based on AC3 3ph,220VAC)
16A
24A
30A
35A
44A
58A
68A
100A
3.Auxiliary
Contacts
£®none)
A
B
1a1b,2a2b(For TC50-80)
°°1a
°°1b

50Hz
60Hz
4.Coil voltage
1
2
3
4
5
6
7
8
9
a
b
c
100VAC
200VAC
346VAC
380-400VAC
110VAC
240VAC
24VAC
48VAC
415VAC
220VAC
500VAC
32VAC
110VAC
220VAC
380VAC
440VAC
120VAC
260VAC
24VAC
48VAC
460VAC
240VAC
550VAC
32VAC
