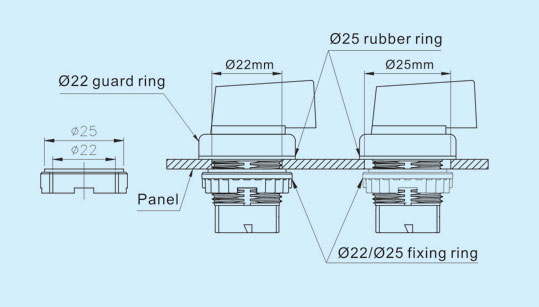

| •The assembly method for ¦µ22/¦µ25 series |
 |

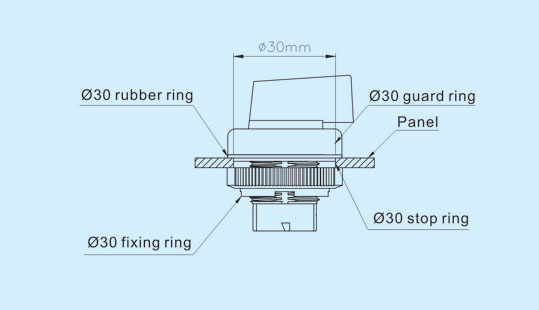

| •The assembly method for ¦µ30 series |
 |
| ◊Assembly instruction |

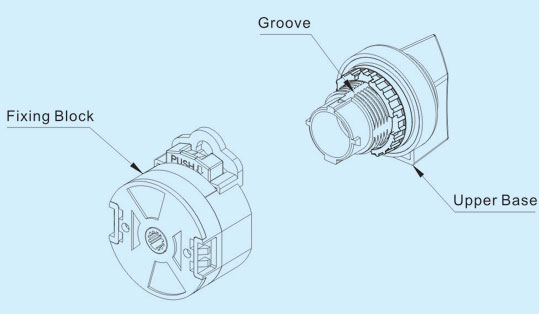

| •Assembly and disassembly of fixing block with upper base |
 |
Assembly:Align the hole on top of fixing block with groove on the upper base and push them together.
Disassembly:place downward by hand or use flat screw-driver to push down the orange button thru the hole on top of the fixing block.
|

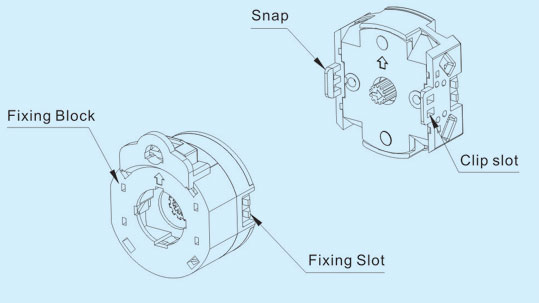

| •Assembly and disassembly of fixing block with contact block |
 |
Assembly:Align the fixing slot on the tixing block to clip slot on the contact block.
Disassembly:Use flat screwdriver toward fixing slot to lift up clip and snap tor disassembly. |
|
