| ¡öCam Switch |
| ◊Feature |
•The upper and lower bases of ¦µ22/¦µ25/¦µ30 series can
be push-button assembled or disassenbled as per our

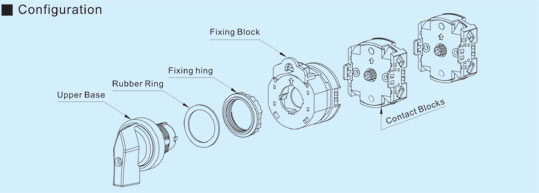

patent.Upper base,fixed base and contact are three
detachable parts.
|
 |
•Unique modular design of contact blocks keeps internal
parts from falling apart when contact blocks are
disassembled or replaced. |
•Can assenble or disassemble contact blocks to suit for
various models yet without risking excessive stock. |
•Contact blocks can be added click-on easily,no need to
unscrew. |
•Connecting screws are fastened from the back rather than normally from the side. It
makes wiring easier. |
•A special design to keep connecting terminals and screws in the contact blocks can
prevent users from from electric shocking. |
| •All the connecting pieces of terminals are covered to avoid from electric shocking. |
•Capacities are differentiaed by colors of contact blocks:blue for 10A;gray for 16A
and black tor 25A. |
