■Cam Switch
■Dimendions

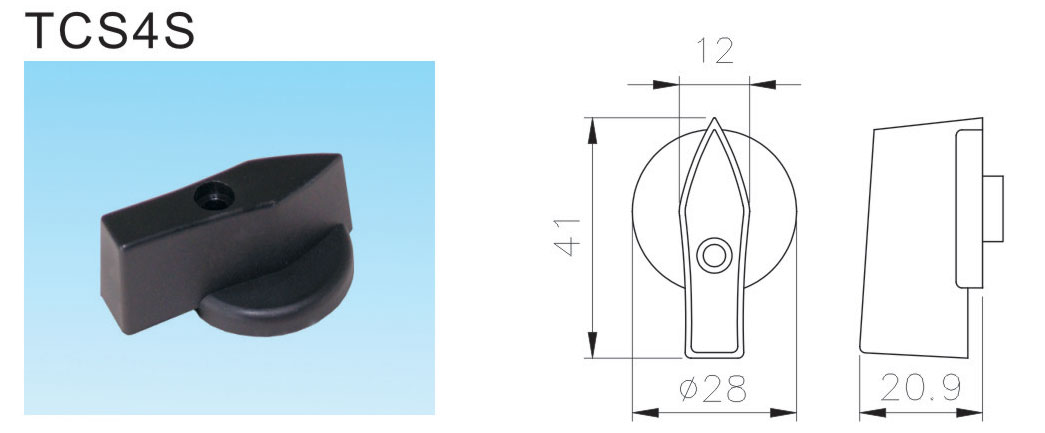

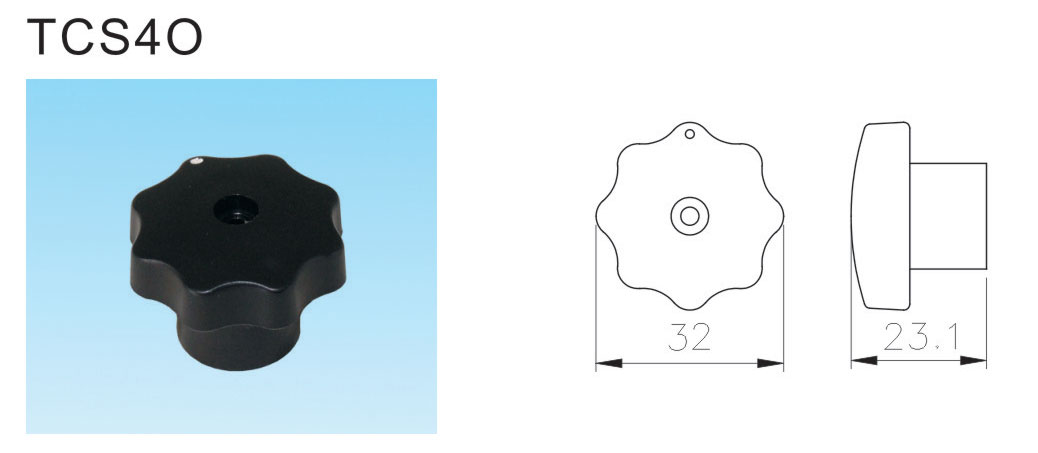

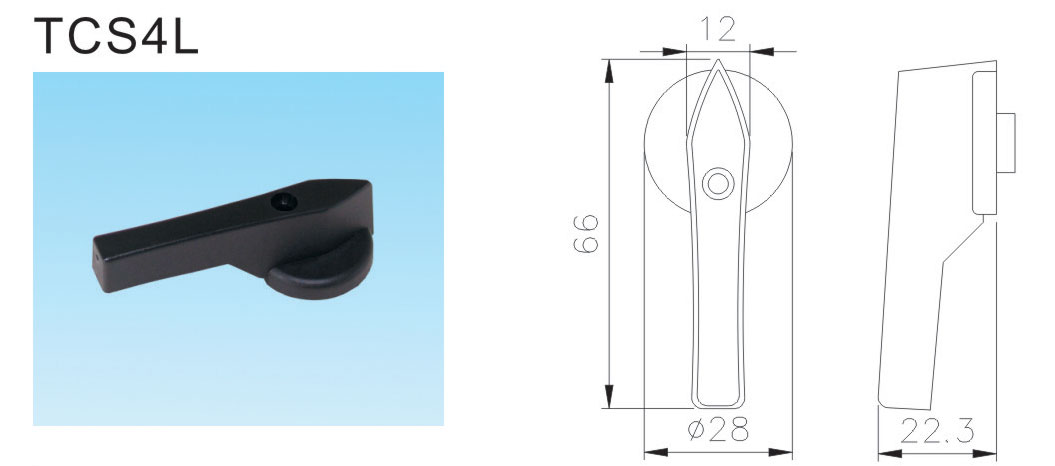

TCS4S TCS4L TCS4O
click here click here click here

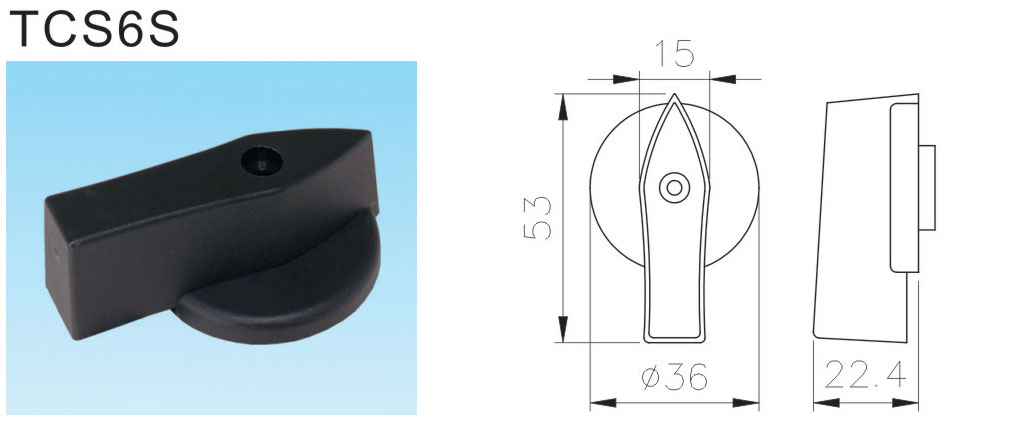

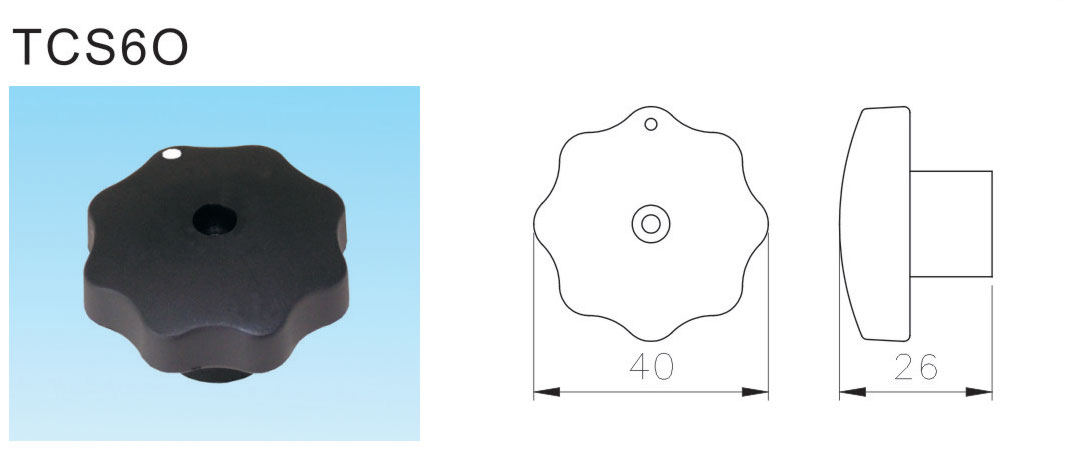

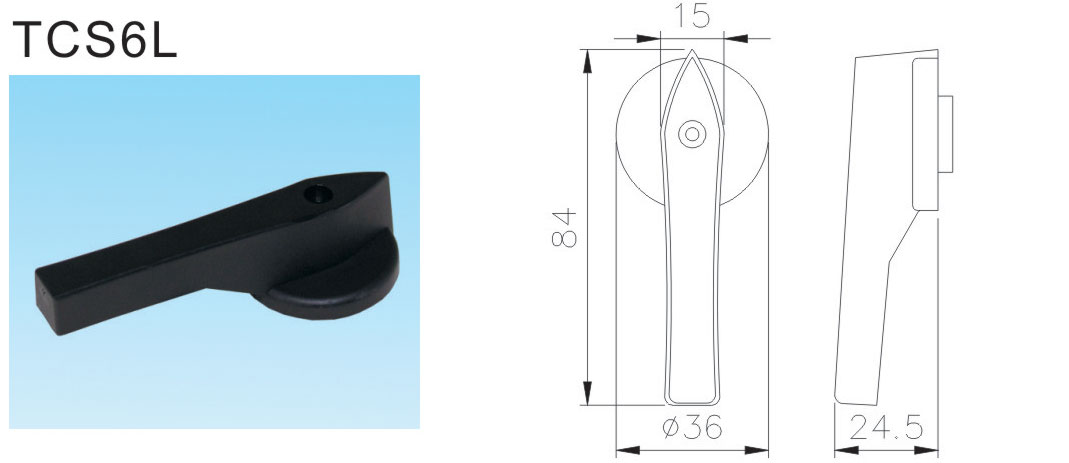

TCS6S TCS6L TCS6O
click here click here click here
■Model designation
Designation Signal Description
1.Size 4 48*48mm
6 64*64mm
2.Handle S Short handle
L long handle
O Octagonal handle
■Contact Block designation
Designation Signal Description
1.Capacity 1 10A
2 16A
3 25A
2.No.of Contacts
   Fitted		 S Single-point contact
C Double-point contact
3.Contact blocks    number 01~A1 ——

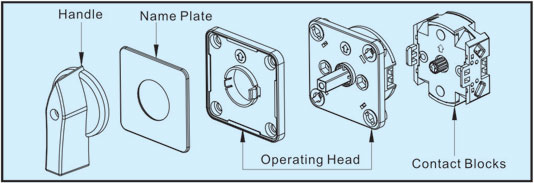

●48*48mm and 64*64mm series sub-assembly

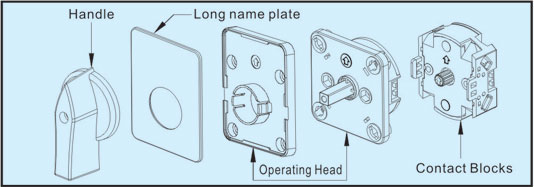

●48*60mm and 64*80mm series sub-assembly
