Cam Switch
  . 48mm and 64mm Series
  . 48*60 and 64*80 Series
  . 48*48 and 64*64 Series
  . 48*60 and 64*80 Series
  . ¦µ22/¦µ25/¦µ30 Series








¡öCam Switch
¡öDimendions

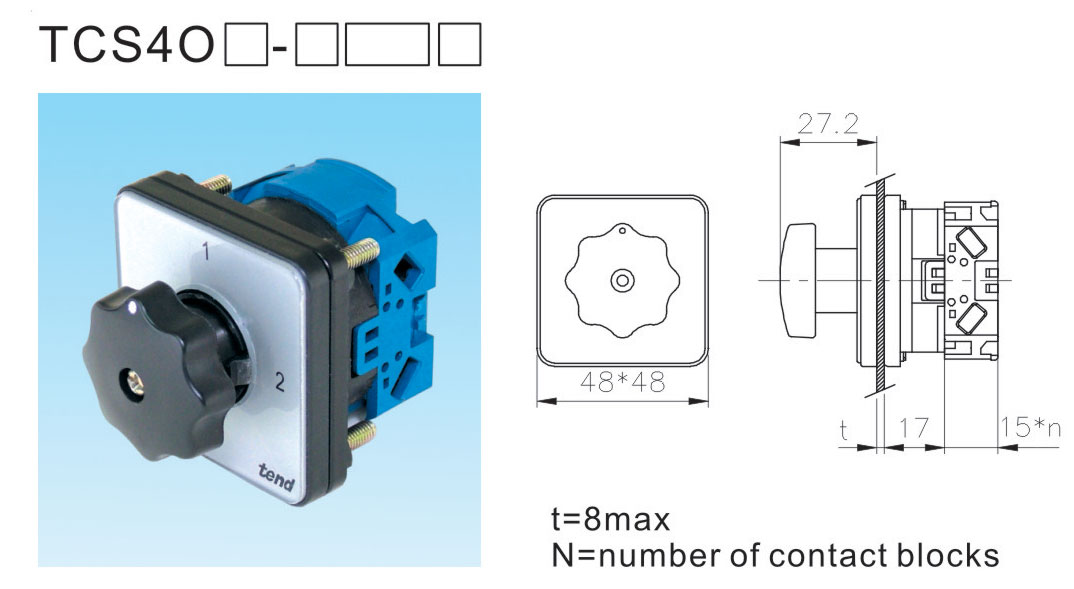

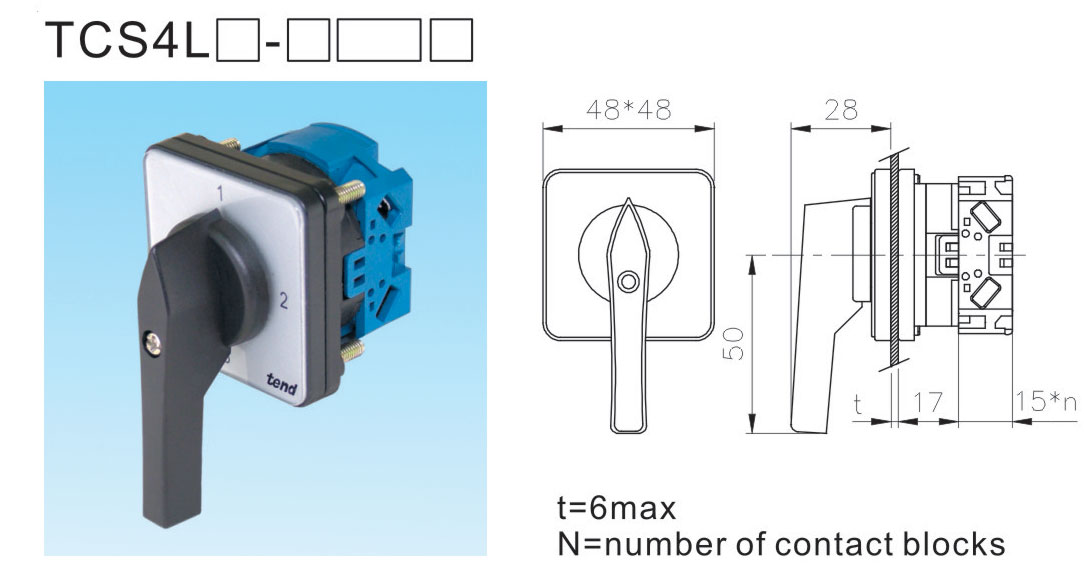

TCS4S¡õ-¡õ¡õ¡õ TCS4L¡õ-¡õ¡õ¡õ TCS4O¡õ-¡õ¡õ¡õ
click here click here click here

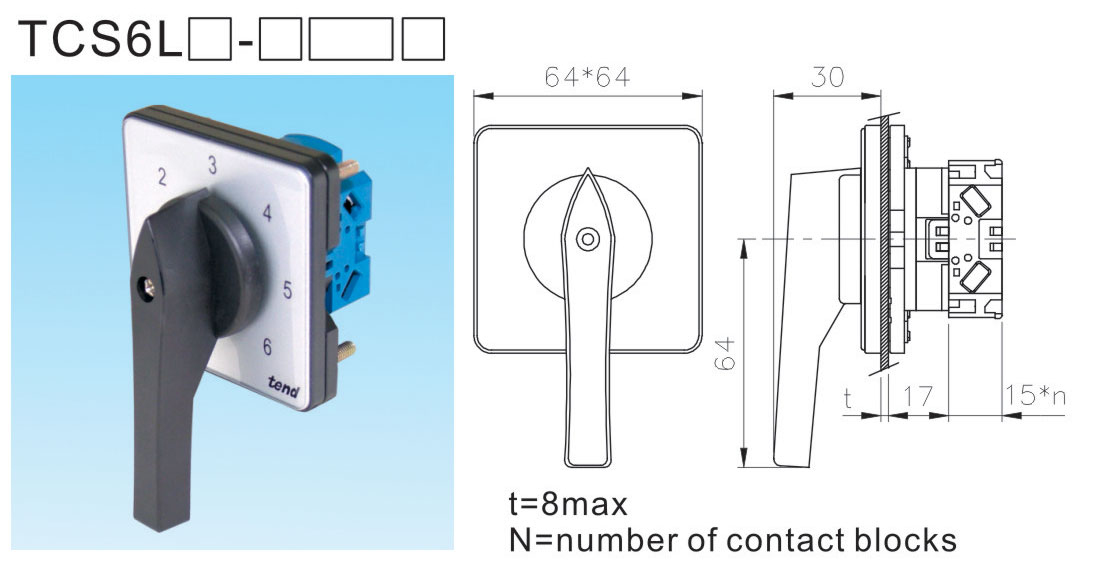

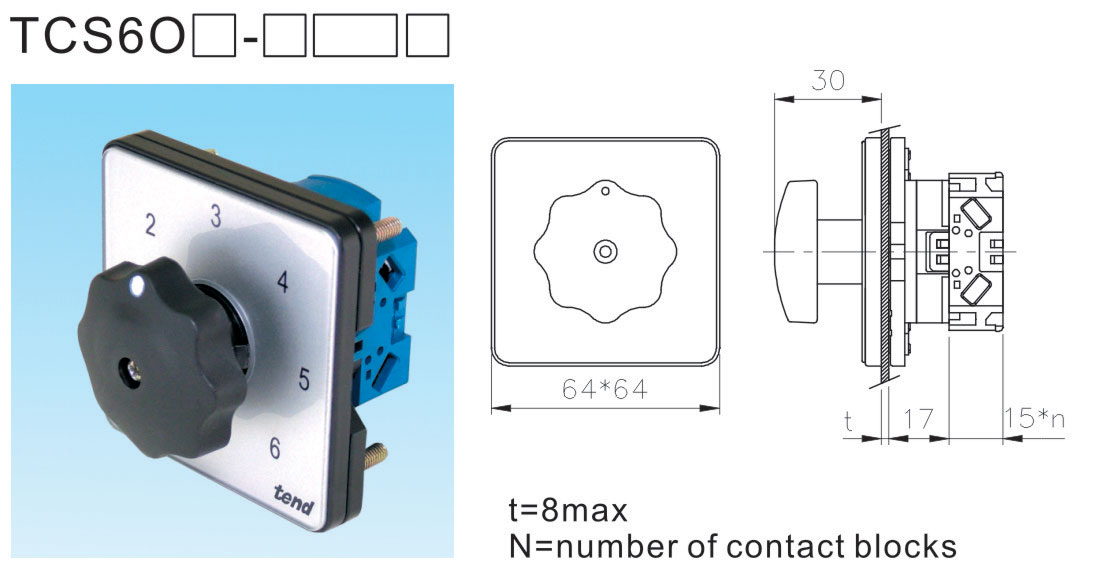

TCS6S¡õ-¡õ¡õ¡õ TCS6L¡õ-¡õ¡õ¡õ TCS6O¡õ-¡õ¡õ¡õ
click here click here click here

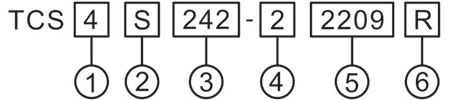

¡öModel designation
Designation Signal Description
1.Size 4 48*48
6 64*64
2.Handle S Short handle
L long handle
O Octagonal handle
3.Position,turn angle
   plate number 		240~842 ¡ª¡ª
4.Capacity 1 10A
2 16A
3 25A
5.Wiring diagram number   ¡ª¡ª
6.Operation None Hold
R Spring return
(45¡ã,2 position,3 position only)
