| ¡öFEATURES |

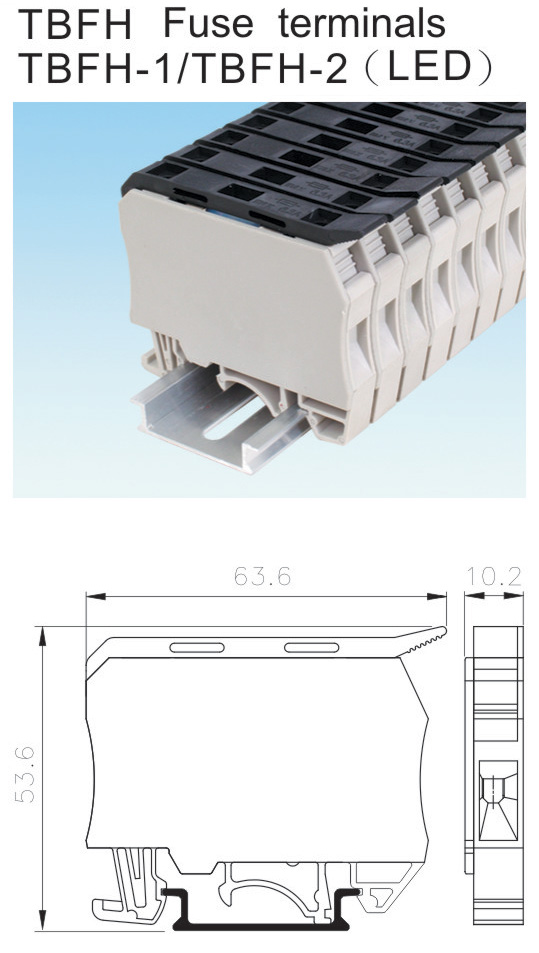

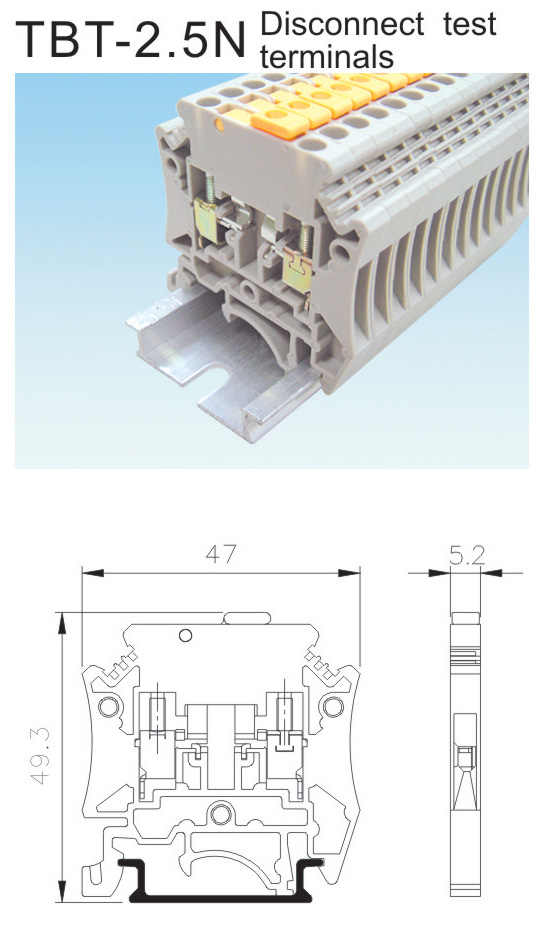

| TBT disconnect test terminal block and TBFV(H) fuse terminal block may fit in either TBR-N or TBU-N rails simply with the frame-pressed line. |
| It's made of quenched and galvanized premiumsteel. |
|
Can use matching short-circuit tag.The design conforms to the requirem ents of international standard IEC60947-7-1. |
|
| Specifications |
IEC |
IEC |
IEC |
| Rated current |
10A |
10A |
6.3A |
| Rated voltage |
400V |
500V |
400V |
| Cross - section |
2.5mm2 |
10mm2 |
4mm2 |
| Single center |
22-12AWG |
16-6AWG |
22-10AWG |
| Complex center |
22-12AWG |
16-6AWG |
22-10AWG |
| Rated impulse voltage |
5KV |
5KV |
5KV |
| Tightening torque range |
4kgf.cm |
16kgf.cm |
6kgf.cm |
| Clamping screw |
M2.6 |
M4 |
M3 |
Insulation stripping
length |
10~12mm |
10~12mm |
10~12mm |
| G-fuse inserts |
--------- |
Φ5*20 |
Φ5*20/Φ5*25 |
| Accessories |
Type Qty. |
Type Qty. |
Type Qty. |
Marking tags
 |
TBU2.5N-A 100 |
TBU10N-A 100 |
TBU6N-A 100 |
End bracket  |
TBU2.5N-F 10 |
TBU2.5N-F 10 |
TBU2.5N-F 10 |
End plate  |
TBU2.5N-H 100 |
-------- |
TBUF-H 100 |
Mounting rails
 |
TBR-N(AI)/TBR-S(S) 1 |
TBR-N(AI)/TBR-S(S) 1 |
TBR-N(AI)/TBR-S(S) 1 |
|
TBU-N(AI)/TBU-S(S) 1 |
TBU-N(AI)/TBU-S(S) 1 |
TBU-N(AI)/TBU-S(S) 1 |
Cross - connection
systems  |
-------- |
TBU16N-CU2 2P 50 |
--------- |
|
-------- |
TBU16N-CU3 3P 50 |
--------- |
Cross - connection
combs  |
TBU2.5N-CS2 2P 50 |
TBU16N-CS2 2P 50 |
TBU10N-CS2 2P 50 |
|
TBU2.5N-CS3 3P 50 |
TBU16N-CS3 3P 50 |
TBU10N-CS3 3P 50 |
|
TBU2.5N-CS4 4P 50 |
TBU16N-CS4 4P 50 |
TBU10N-CS4 4P 50 |
|
TBU2.5N-CS10 10P 20 |
TBU16N-CS10 10P 10 |
TBU10N-CS10 10P 20 |
| Specifications |
Description |
| LED |

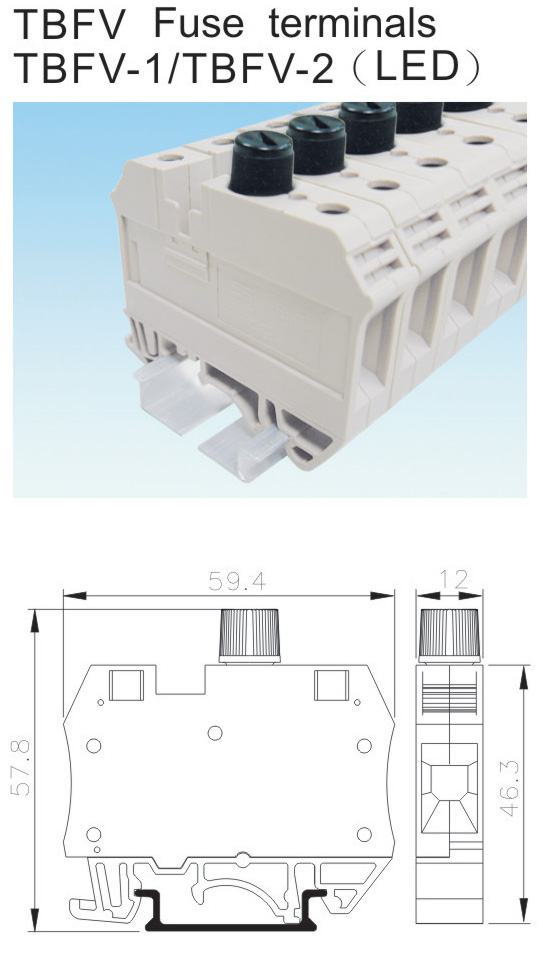

TBFV-1/TBFV-1:10~30VAC/DC TBFV-2/TBFV-2:110~250VAC |
|
|
