Terminal Blocks
  . TBU¡¡ Series
  . TBE¡¡ Series






¡öFEATURES
  • TBE earthed terminal block may fit in either TBR-N or TBU-N rails simply with the frame-pressed line.
  • It's made of quenched and galvanized premiumsteel.
  • Can use matching short-circuit tag.The design conforms to the requirem ents of international standard IEC60947-7-2.

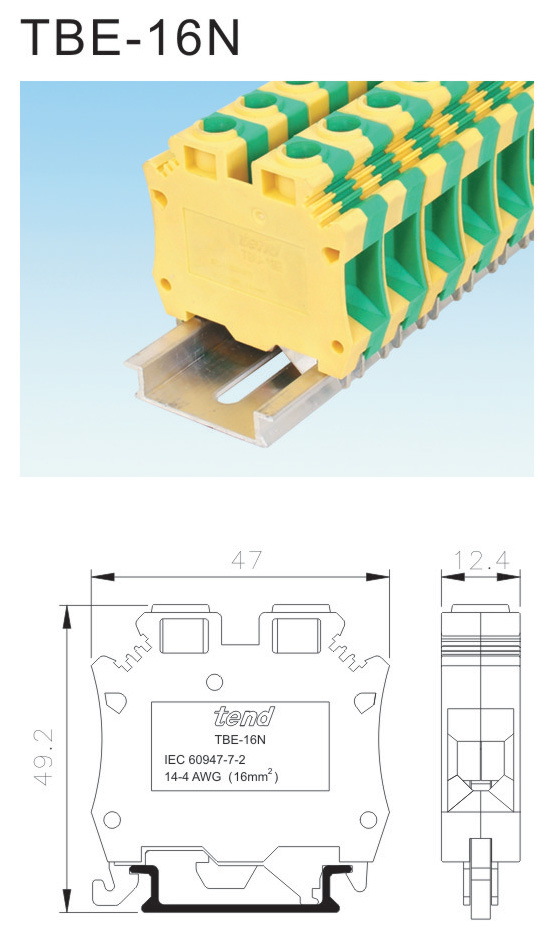

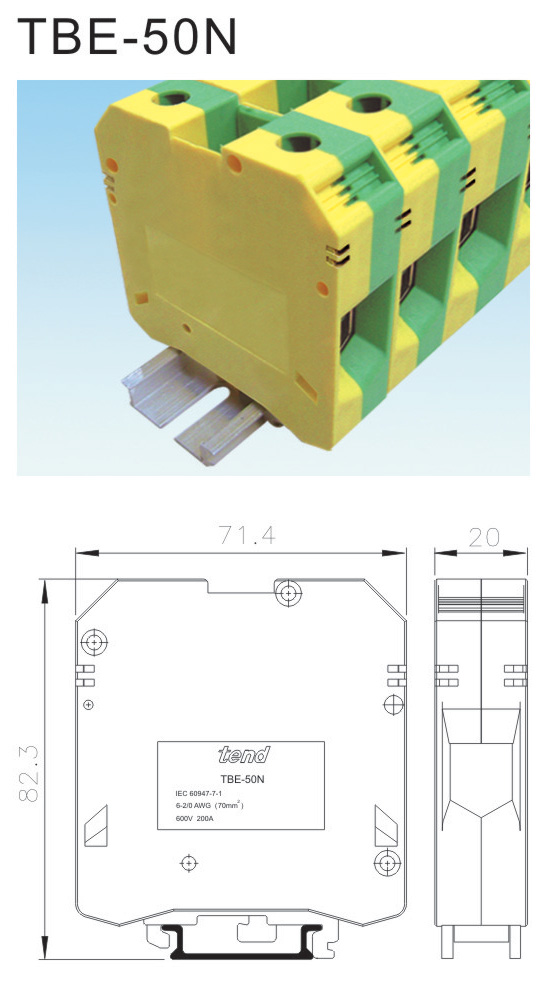

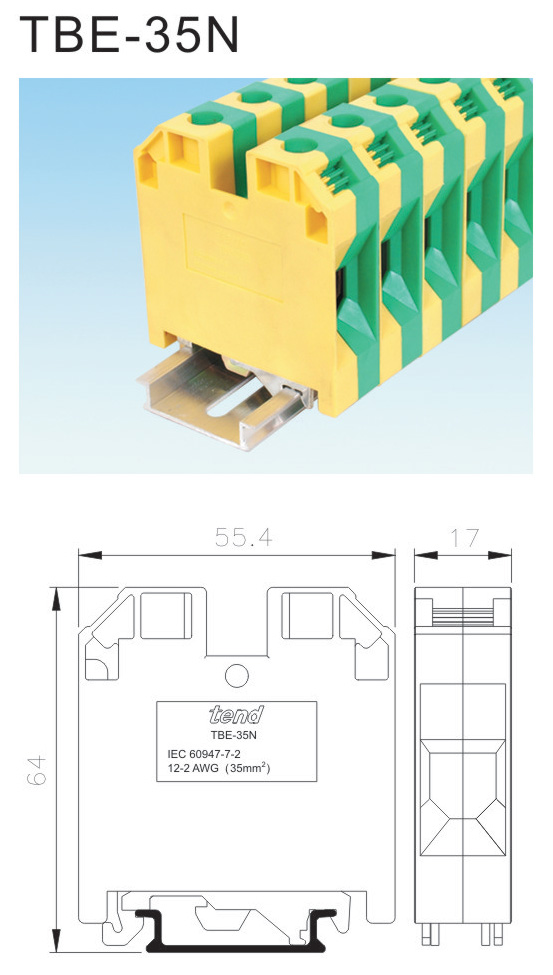

    TBE-16N TBE-35N TBE-50N
    Specifications IEC IEC IEC
    Rated current 76A 125A 150A
    Cross - section 16mm2 35mm2 50mm2
    Single center 14-6AWG 12-2AWG 6-1/0AWG
    Complex center 14-6AWG 12-2AWG 6-1/0AWG
    Rated impulse voltage 5KV 5KV 5KV
    Tightening torque range 30kgf.cm 50kgf.cm 50kgf.cm
    Clamping screw M5 M6 M6
    Insulation stripping
    length
    10~12mm 15~20mm 25~30mm
    Accessories Type              Qty. Type            Qty. Type           Qty.
    Marking tags
    TBU10N-A      100 TBU10N-A      100 TBU50N-A      50
    End bracket
    TBU2.5N-F       10 TBU35N-F     10 TBU35N-F     10
    Mounting rails
    TBR-N(AI)/TBR-S(S) 1 TBR-N(AI)/TBR-S(S) 1 TBR-N(AI)/TBR-S(S) 1
    TBR-U(AI)/TBU-S(S) 1 TBR-U(AI)/TBU-S(S) 1 TBR-U(AI)/TBU-S(S) 1
