| ·Dimensions |
|
| |

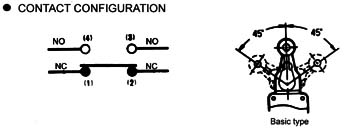

| .Contact configuration |
 |
| Overtravel type |
 |
| The Overtravel Type is a limit switch which is provided |
| with a greater OT to facilitate dog setting. Since this type |
| is identical to the Basic Type in dimensions, both types |
| are interchangeable.the Overtravel Type is classified into |
| two versions -2 series and -2N series. |
| |
| |
|
| -2 series |
| The head of -2 series switch can be installed in any of the four directions. |
| 90° operation on only one side-impossible |
| 90° operation on either side-possible |
|
| -2N series |
| The head of -2 series switch can be installed only in two directions, forward and |
| backward. |
| 90° operation on only one side – possible |
| 90° operation on either side – possible |
|
|
