| ■外形尺寸 |

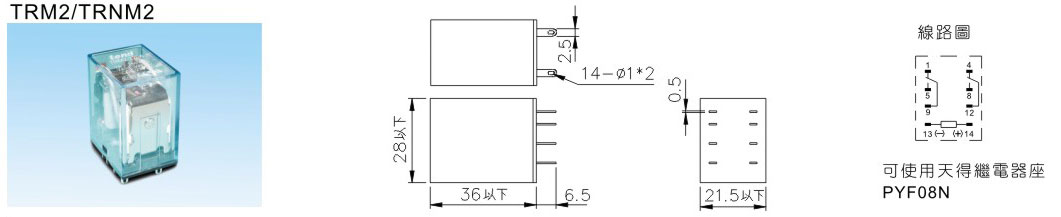

| TRM2/TRNM2 |

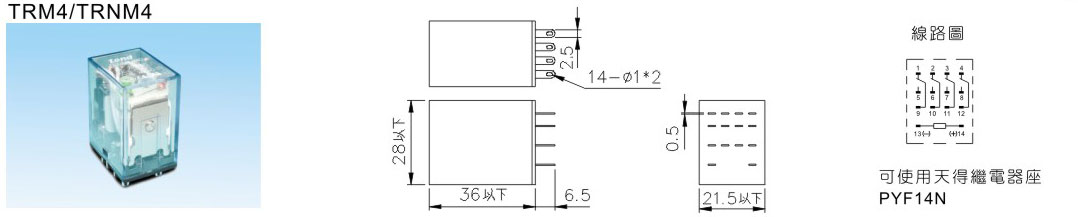

TRM4/TRNM4 |
 |
 |

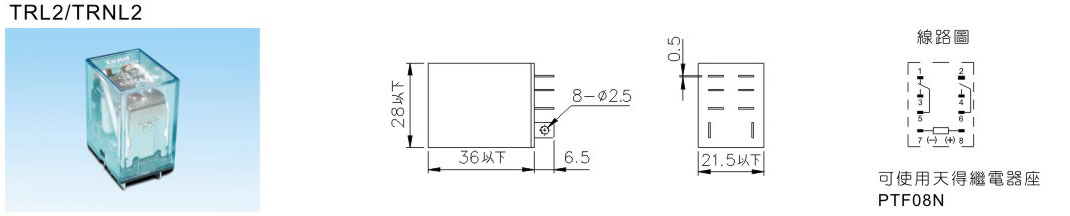

| TRL2/TRNL2 |

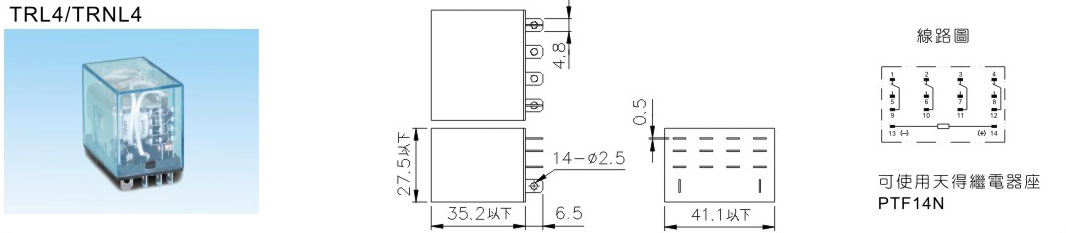

TRL4/TRNL4 |
 |
 |
|
| ■特性 |
| ●UI安全认证. |
●线圈电压有AC和DC. |
| ●额定电压DC900mW&AC1.2VA. |
●可选购附LED指示灯. |
| ●操作电压DC510mW. |
●线圈耗电量功率低,反应时间快. |
|
| ■接点规格 |
| 形式 |
TRM2/TRNM2 |
TRM4/TRNM4 |
TRL2/TRL4
TRNL2/TRNL4 |
| 额定电流 |
7A 250VAC |
5A 250VAC |
10A 250VAC |
| 7A 30VDC |
5A 30VDC |
10A 30VDC |
|
| ■线圈特性 |
| 线圈形式 |
电压(V) |
电阻(Ω)
(±10%Pa) |
启动电压
(V)≤ |
停止电压
(V)≥ |
| DC |
6 |
40 |
4.5 |
0.6 |
| 12 |
160 |
9 |
1.2 |
| 24 |
650 |
18 |
2.4 |
| 48 |
2600 |
36 |
4.8 |
| 100 |
11000 |
75 |
10 |
| AC |
12 |
46 |
9 |
3.6 |
| 24 |
180 |
18 |
7.2 |
| 110 |
3750 |
82.5 |
33 |
| 120 |
4430 |
90 |
36 |
| 220 |
12590 |
165 |
66 |
| 240 |
18790 |
180 |
72 |
| 270 |
24150 |
202.5 |
81 |
|
| ■型号说明 |
 |
| 项次 |
代号 |
说明 |
| 1.形式 |
TRM |
窄型端子 |
| TRNM |
窄型端子附LED灯 |
| TRL |
宽型端子 |
| TRNL |
宽型端子附LED灯 |
| 2.接点 |
2 |
2A2B |
| 4 |
4A4B |
| 3.线圈电压 |
6D |
6VDC |
| 12D |
12VDC |
| 24D |
24VDC |
| 48D |
48VDC |
| 100D |
100VDC |
| 12A |
12VAC |
| 24A |
24VAC |
| 110A |
110VAC |
| 120A |
120VAC |
| 220A |
220VAC |
| 240A |
240VAC |
| 270A |
270VAC |
|
| |
|
