Hoist pushbutton switch
  . Direct hoist pushbutton switch
  (Waterproof Type)
  . Indirect hoist pushbutton   switch (waterproof Type)
  . Direct hoist pushbutton switch
  . Indirect hoist pushbutton   switch








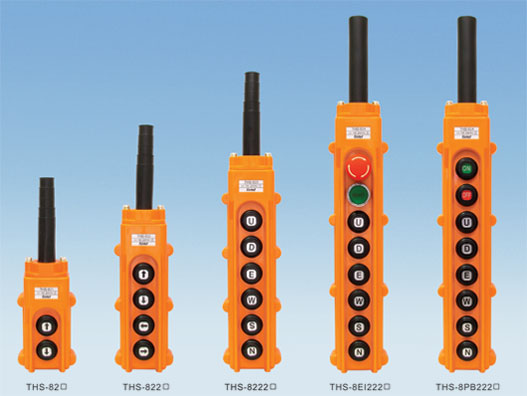

”öDirect hoist pushbutton switch (Waterproof Type)

”öFeatures
”ńThis switch can control three phases motor directly,No need to use magnetic
   switch.Easy wiring.
”ńThis switch is waterproof and made out of ABS housing.Suitable for out-door    application.
”ńUnique mechanical interlock design,which can help prevent short-cicuit.
”ńCan be used with emergency switch,pilot lamp,push button switch,or key switch.
   The switch is 1th=10A.
”öCharacteristics
Type SPEC External Diameter of Cable Terminal Remarks
THS82C Three 200/220VAC
Phase 400/440VAC
2.2KW

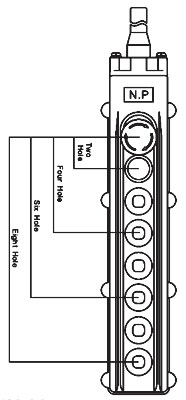

Two Holes ¦µ11.3~¦µ13.5 M3.5 Control
Motor
Directly
Four Holes ¦µ13.3~¦µ16.5
Six Holes ¦µ16.3~¦µ19.5
Eight Holes ¦µ19.3~¦µ22.5
”öModel Description
  One-Two
Holes
Three-Four
Holes
Five-Six
Holes
Seven-Eight
Holes
Label
THS-8 2       None

A

E
THS-8 2 2
THS-8 ES 2 2
THS-8 EP 2 2 2
Designation Signal Description
Control Type 2 Direct Single Speed
Push button

Switch
EX Emergency Stop+
Waterproof Rubber
EB Emergency Stop+
Flat Push Button Switch
EI Emergency Stop+
illuminated Push Button Switch
EK Emergency Stop+
Key Switch
EP Emergency Stop+
Pilot Lamp
ES Emergency Stop+
Selector Switch
PB On-off (1A) S witch
