，Model designation
Designation
Signal
Description
　1.Type
TZ-93
safety switch
　2.type of contact 　Blocks fitted
B
C
2b(2NC)
1a1b(No-Nc)
　3.Conduit entries
PG
PT
PG 13.5XP1.5
PT1/2X14UNC
　4.Actuating keys
None
01
02
03
None
Horizontal
Vertical
Adjustable

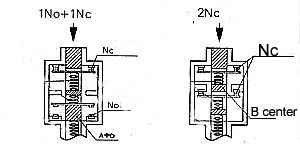

，Required to have positive machine
When the contact block get fire,press
on the middle of the key structure,
the Nc strict leaving structure can
push the contact block a way cut off the movement.



，Use attention affair
　.To prevent the wear and the space
　should be within 1mm between the
　key and middle of the insert hole.
.When in use,there should put a plate on the
top to prevent the key overinsert.To prevent
nonmovement ,the space between the plate
and the switch should be under 3 mm.
，Specifications
.Ratings
Rated
voltage
(V)
Noninductive load(A)
Inductive load(A)
Resistive load
Lamp load
Inductive load
Motor load
NC
NO
NC
NO
NC
NO
NC
NO
125 VAC
250 VAC
400 VAC
10
10
10
3
2
1.5
1.5
1
0.8
10
10
3
5
3
1.5
2.5
1.5
0.8
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
10
10
6
0.8
0.4
6
6
4
0.2
0.1
3
3
3
0.2
0.1
10
10
6
0.8
0.4
6
6
4
0.2
0.1

，Characteristics
　Rating 　3A 240VAC (A300)
　Operating speed 　0.1m ~0.5m/s
　Operating frequency

　30 times/minute
　Contact resistance 　25mΩ max. (initial).
　Insulation resistance 　100MΩ min. (at 500VDC)
　Rated insulation voltage 　(UI) 　400V
　Dielectric strength 　AC2500V/Umip 4KV
　Vibration 　10 to 55Hz, 0.65mm double amplitude
　Shock 　Mechanically:
　Approx. 1000m/s2 (Approx. 100G's)
　Electrically:
　Approx. 300m/s2 (Approx. 30G's)
　Ambient temperature 　-30~+70C
　Ambient Humidity 　Blow 95RH
　Service life 　Mechanically: 10,000,000 operations/min
　Electrically: 150,000 operations/min.
　Degree of protection 　IP65(EN60947-5-1)
　Short-circuit protective 　device

　10A fuse

　Weight 　Approx. 76g
